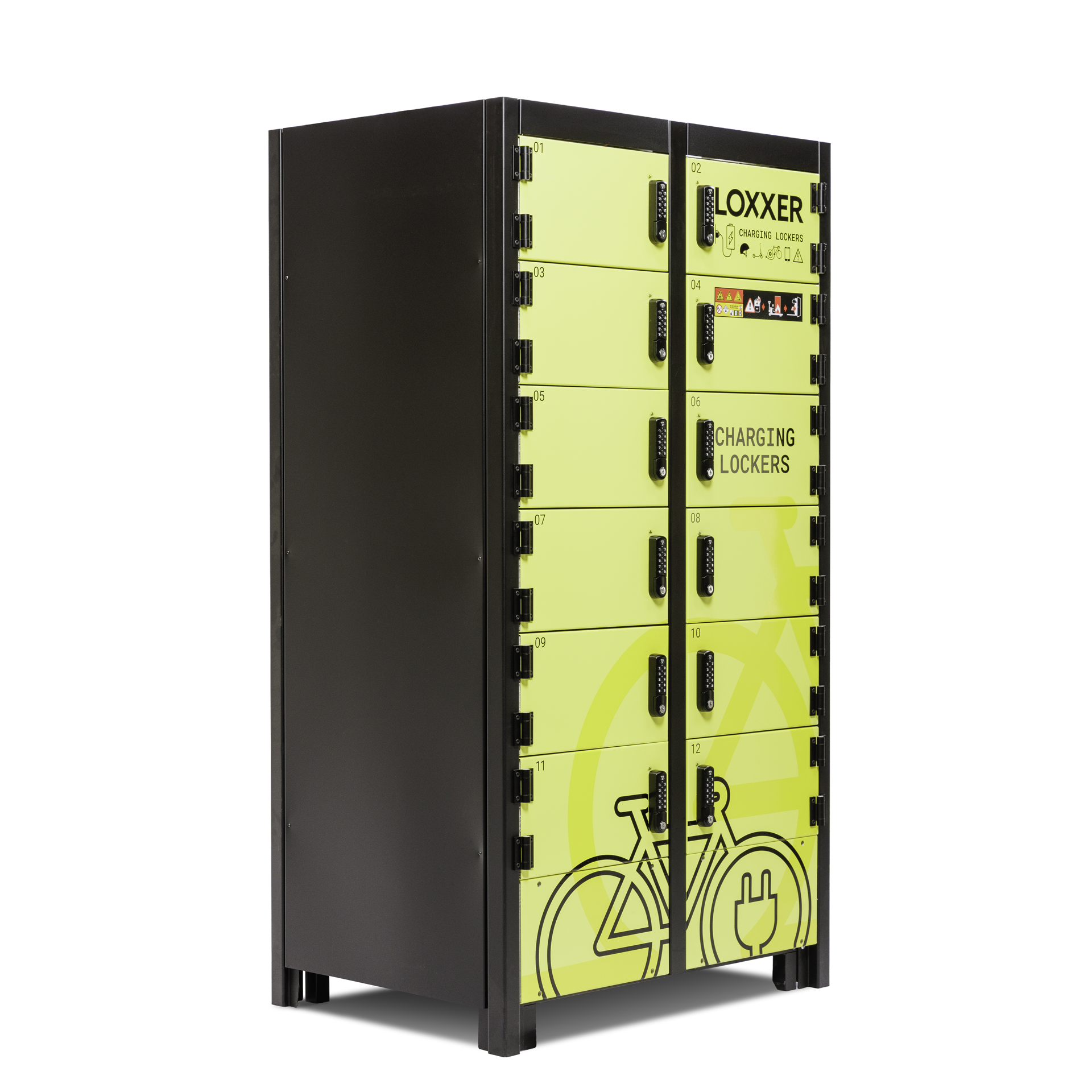

| External dimensions | 765 x 1042 x 2015 mm |
|---|---|
| Compartment dimensions | 484 x 246 x 683 mm |
| Weight | 400 kg |

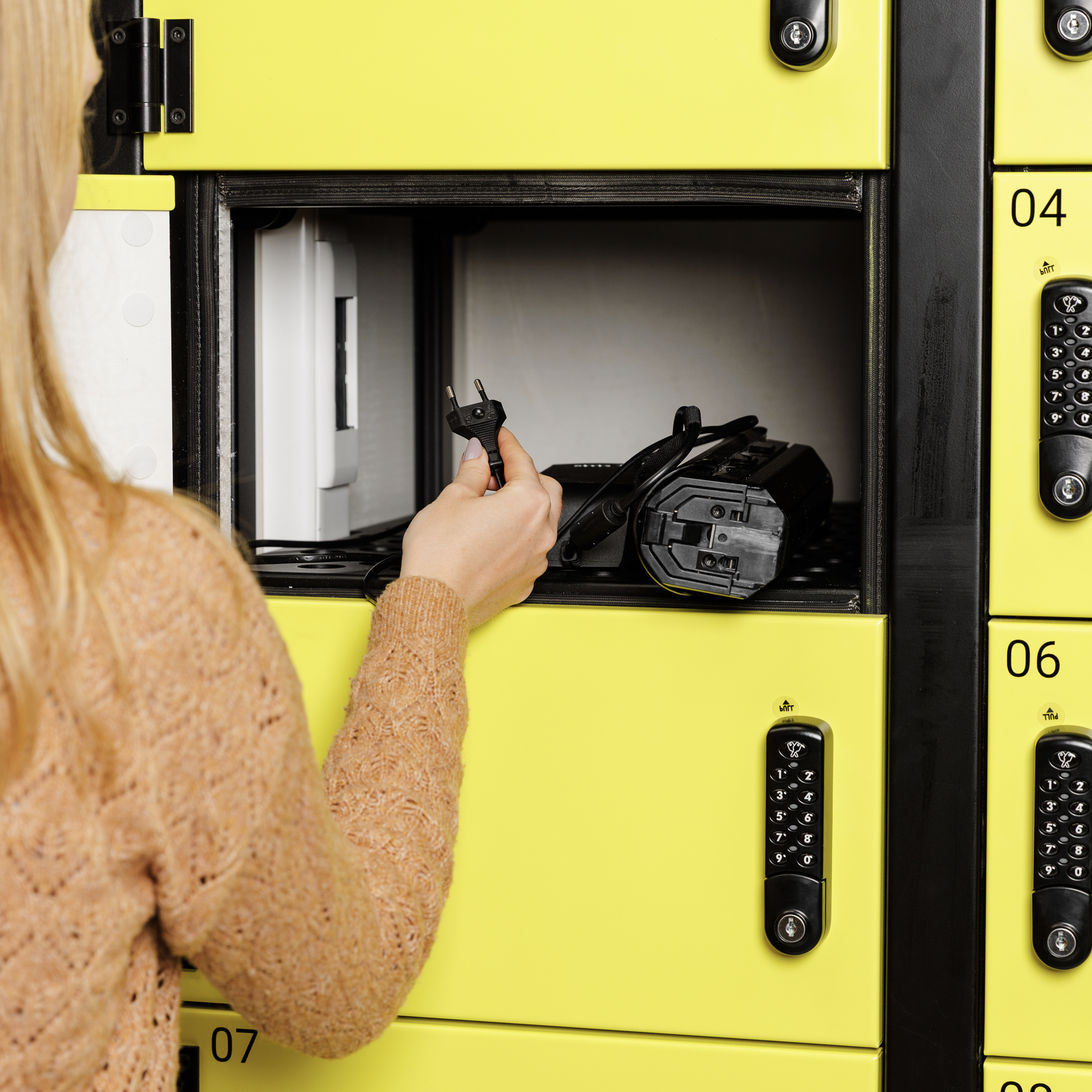

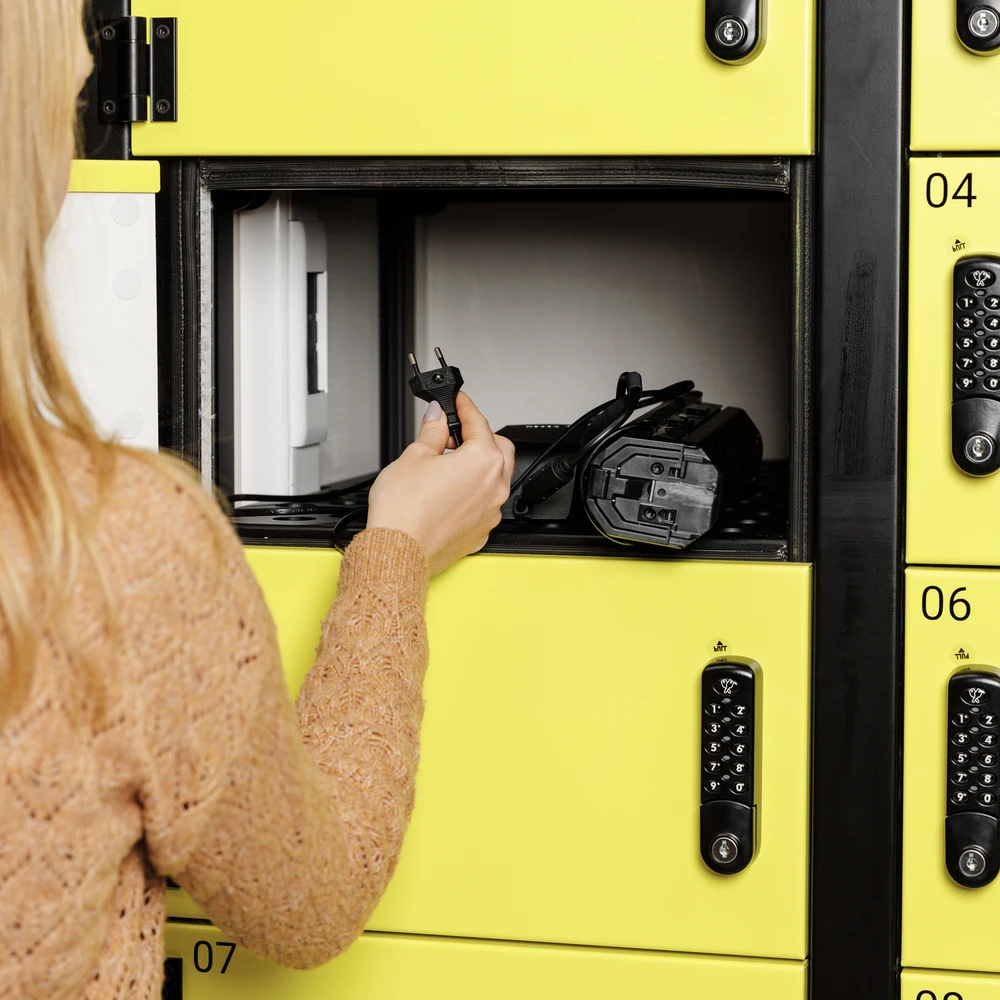

| Outlets | 2x 230V per locker, (24 total) max. 16A per outlet |
| Lock / Doors | Individual combination lock per compartment |

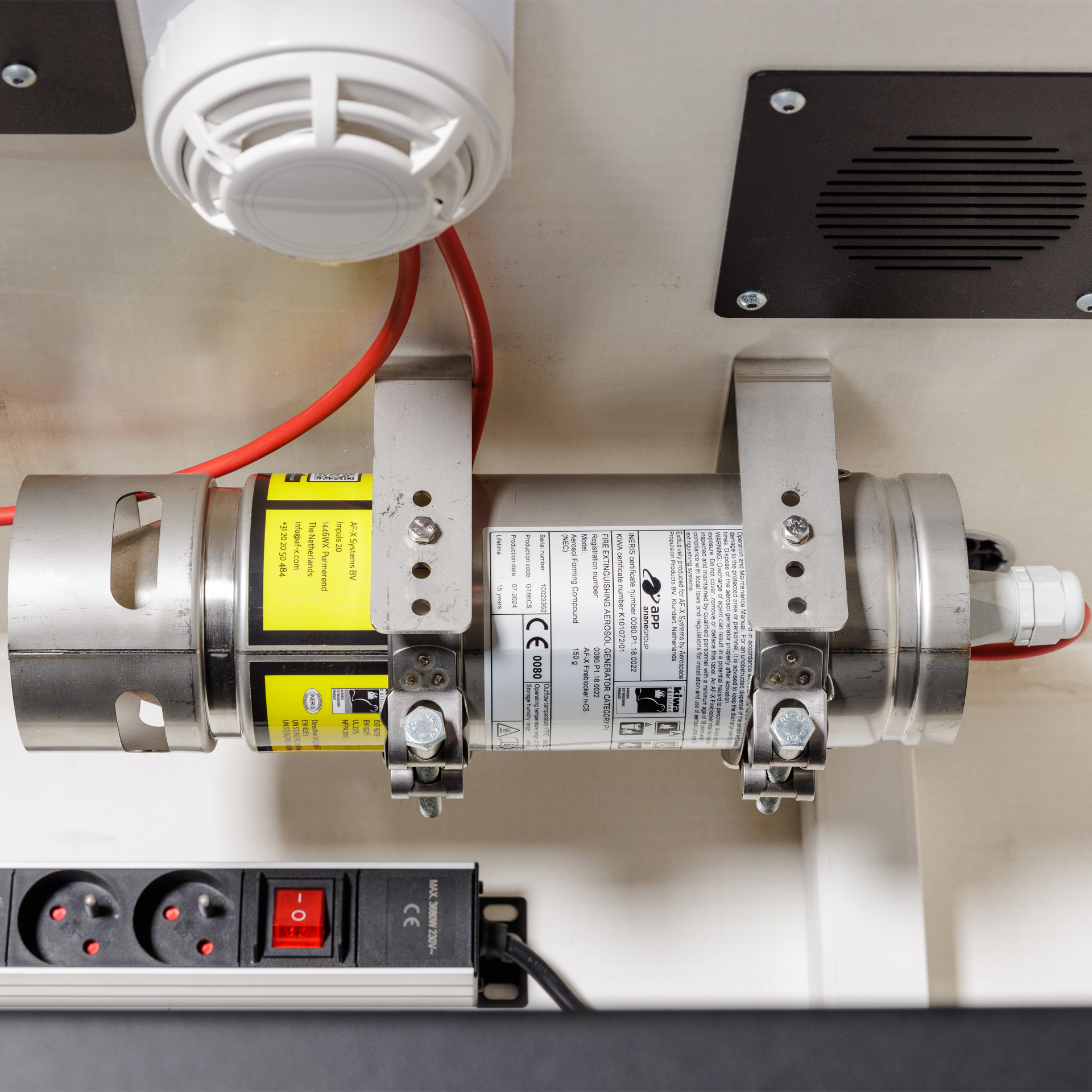

| Detection | Smoke detector and temperature detector |
| Alarm | Audiovisual alarm, RGB LED status indication |
| Ventilation | 1,2 m3/minute |
| Connection to fire alarm system | Yes |
| Compartments | 12 |
| Maximum load capacity shelf | max. 70 kg per shelf |
| Ambient temperature | 5-35 °C |
| Certification | CE marking, EN 1364-1:2015 |
| Fire raiting | A1 |
| Overpressure system | Active, with exhaust connection(200 mm) |
| Pallet jack | Cutouts on all 4 sides |
| Relative humidity | 30-70% |
| Sound level alarm | 94-106 dB(A) |
| Power source | 380V (3-phase), optionally 230V |
| Brand | LOXXER |
| unit | ST |
|---|---|
| quantityConversionFactor | 1 |
| grossWeight | 400 |
| netWeight | 400 |
| grossVolume | |
| netVolume | |
| length | 765 |
| height | 2015 |
| width | 1042 |
| eanNumber | 7320896060807 |
